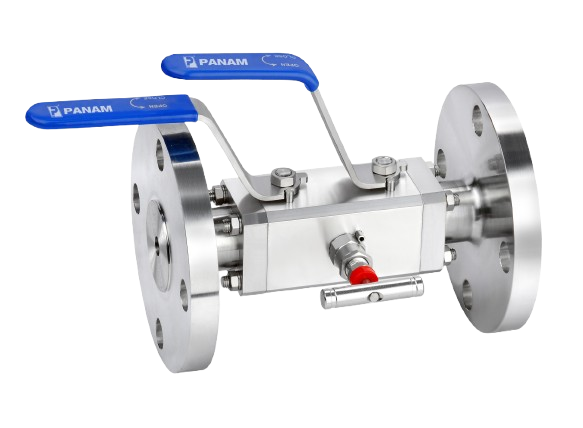

Double Block and Bleed Valves for Positive Isolation in Critical Service
Double Block & Bleed Done Right: Achieving Positive Isolation
SR
Sejal Raina
Digital Marketing
March 25, 2026 • 6 min read
Summer shutdowns compress risk into tight windows. When time is short, plant conditions shift, and multiple trades converge, isolation mistakes multiply. This guide provides a safety-led foundation for specifying and executing Double Block and Bleed (DB&B) correctly ensuring you can prove zero energy, protect your team, and return to service with confidence.
DB&B vs. DIB: Defining the Core Distinction
Understanding the mechanical differences between these arrangements is vital for site safety and P&ID accuracy:
Double Block and Bleed (DB&B):
Two seating elements in series that isolate a single pressure source with a bleed in between. It is primarily used to isolate the downstream side from upstream pressure.
Double Isolation and Bleed (DIB):
Two seating elements capable of bidirectional isolation.
DIB-1: One seat seals in both directions; the other is unidirectional.
DIB-2: Both seats are bidirectional, offering the highest integrity against pressure from either side.
Common DB&B Frequently Asked Questions
What is the purpose of a block and bleed valve?
To isolate process pressure and provide a controlled bleed so you can vent, drain, and verify zero energy before maintenance.
When should you use a double block and bleed?
Use it when you need testable isolation with a measurable cavity, especially in gas service, custody transfer, hydrogen systems, and high-pressure headers during short shutdowns.
What are the advantages of a double block and bleed valve?
It offers verifiable isolation, faster maintenance, fewer potential leak paths with compact bodies, and safer handling of minor seat leakage via the bleed to a safe vent.
What is positive isolation versus double block and bleed?
Positive isolation removes any credible leakage path, typically with a blind or spool removal. DB&B is valve-based, testable isolation; it is strong but still relies on seat integrity. Use risk assessment or standards to choose.
How do double block and bleed valves work?
Two isolation elements close in series, creating a cavity. Opening the bleed relieves and exposes any leakage, letting you confirm pressure is at zero before work.
Proving Zero Energy & Critical Testing
A DB&B arrangement is only as good as its vent path. Bleed ports must lead to a safe location, such as flare headers for hydrogen skids or closed containment for liquids.
| Service Requirement | Recommended Test / Feature | Why it Matters |
|---|---|---|
| Liquid / General | Hydrostatic Pressure Test | Proves body and seat integrity under load |
| Hydrogen / High-Purity | Helium Leak Test | Reveals micro-leaks missed by air or water |
| High Temperature | Metal-to-Metal Seats | Maintains seal when soft seats would fail |
| Dirty / Abrasive Media | Upstream Filtration | Protects seats from scoring and leakage |
To verify isolation in the field, close both block valves, open the bleed, and record the pressure decay to zero on a calibrated gauge. Ensure individually lockable handles for all three points to meet site safety and LOTO standards.
Summary and Next Step
DB&B done right is a disciplined practice, not a symbol on a P&ID. Select the correct seat technology, define sealing direction, route bleeds to safe locations, and prove zero every time. Reserve positive isolation for high-hazard work and follow company standards backed by a clear risk assessment. For hydrogen skids, refinery measurement manifolds, high-pressure gas headers, and custody transfer systems, the right DB&B choice protects people, equipment, and schedules.
Planning a summer outage or a brownfield tie-in where isolation integrity is non-negotiable?
Request a PANAM DB&B application review and valve sizing support. Our engineering team will help align seat design, test method, and vent routing to your pressure class, media, and temperature so you can lock out, prove zero, and proceed with confidence.
Planning a summer outage or a brownfield tie-in where isolation integrity is non-negotiable?
Request a PANAM DB&B application review and valve sizing support. Our engineering team will help align seat design, test method, and vent routing to your pressure class, media, and temperature so you can lock out, prove zero, and proceed with confidence.
