37° Flared JIC Fittings
Leak-Tight. Every Flare.
Male and female connectors, unions, elbows, tees and adapters in 37° JIC flare. Available across NPT, BSPT, BSPP, SAE/MS and Metric thread standards in SS316.
SS316 Stainless Steel
37° JIC / SAE Flare
NPT · BSPT · BSPP · SAE/MS · Metric
1/8" to 2" tube OD range
Male & Female Connectors
Unions · Bulkhead · Swivel
Reducing Adapters · Sleeves
Material certificates on request
SS316 Stainless Steel
37° JIC / SAE Flare
NPT · BSPT · BSPP · SAE/MS · Metric
1/8" to 2" tube OD range
Male & Female Connectors
Unions · Bulkhead · Swivel
Reducing Adapters · Sleeves
Material certificates on request
Every connection geometry.
One flare standard.
PANAM® 37° Flared JIC Fittings cover the complete range of connection geometries required in hydraulic and instrumentation tubing systems — from standard male and female connectors to unions, elbows, tees and reducing adapters.
All fittings are manufactured in SS316 as standard, conforming to SAE J514 and ISO 8434-2. Thread standards include NPT, ISO Tapered (BSPT), ISO Parallel (BSPP), SAE/MS Straight Thread and Metric.
Material certificates are available on request. Tube OD range covers 1/8" through 2" fractional and 3mm through 50mm metric.
Six categories. Full coverage.
Select by fitting category to filter the full range by type, tube OD and thread standard.
Connectors — Male & Female Connectors
SS316 Stainless Steel
Male and female connectors in 37° JIC flare. Available in JIC x NPT, JIC x BSPT, JIC x BSPP, JIC x SAE/MS and JIC Swivel configurations across a full size range.
Unions & Swivel — Unions, Large Hex, Swivel & Bulkhead
SS316 Stainless Steel
Standard unions, large hex unions, swivel unions, bulkhead unions and bulkhead lock nuts in 37° JIC flare. Designed for secure, repositionable connections in instrumentation tubing systems.
Adapters & Reducers — Reducing Adapters & Sleeves
SS316 Stainless Steel
Reducing adapters and sleeves for transitioning between tube OD sizes in 37° JIC flare. Available in a full range of size combinations in both JIC and Metric tube OD.

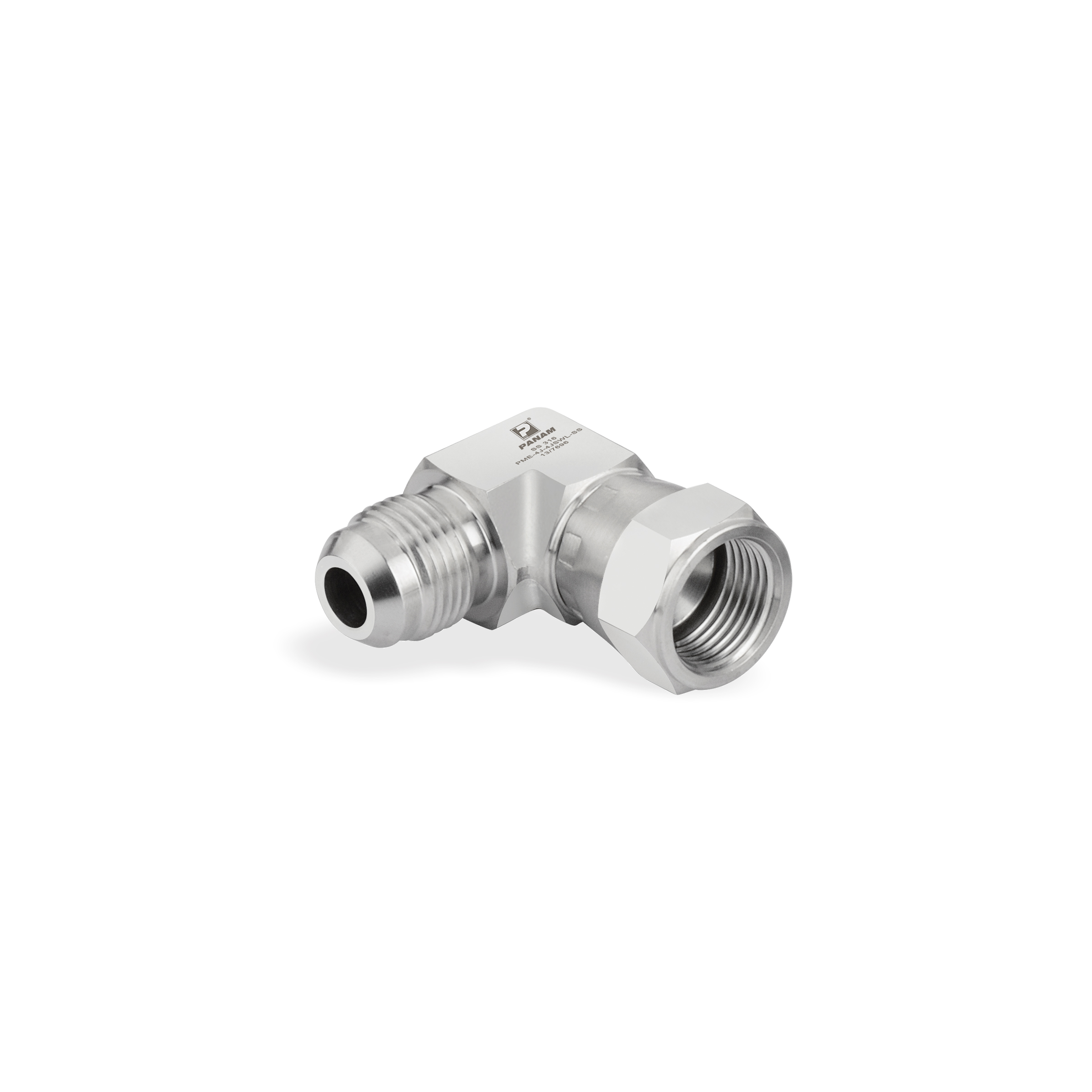

Elbows — Male, 45°, Female, Union & Swivel Elbows
SS316 Stainless Steel
Male elbows, 45° male elbows, female elbows, union elbows, swivel union elbows and adjustable male elbows in 37° JIC flare. Available in JIC x NPT, BSPT, BSPP, SAE/MS and JIC Swivel.

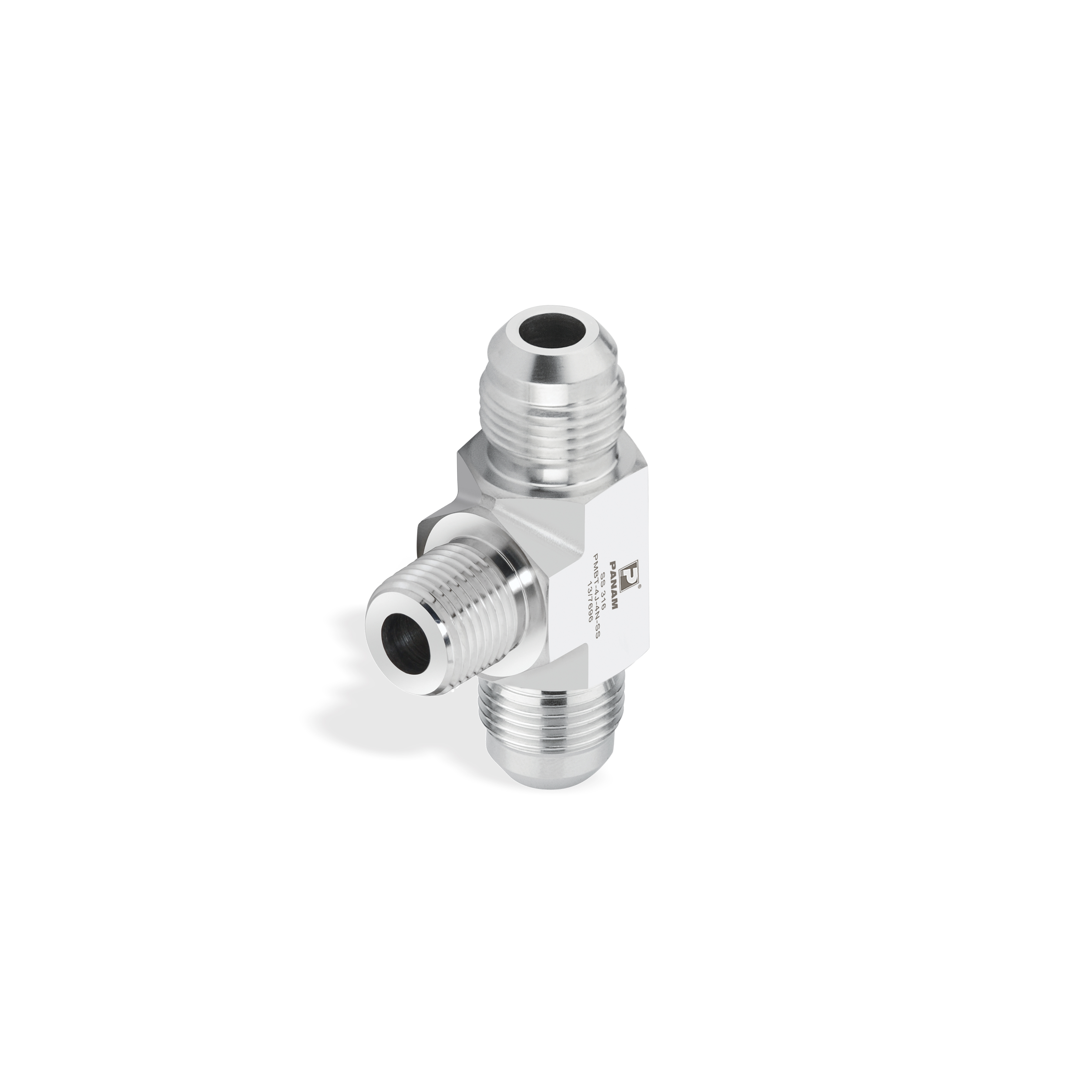

Tees — Male, Female, Union, Swivel & Run Tees
SS316 Stainless Steel
Male branch tees, female branch tees, female run tees, union tees, swivel union tees, swivel run tees, swivel branch tees and union cross in 37° JIC flare.

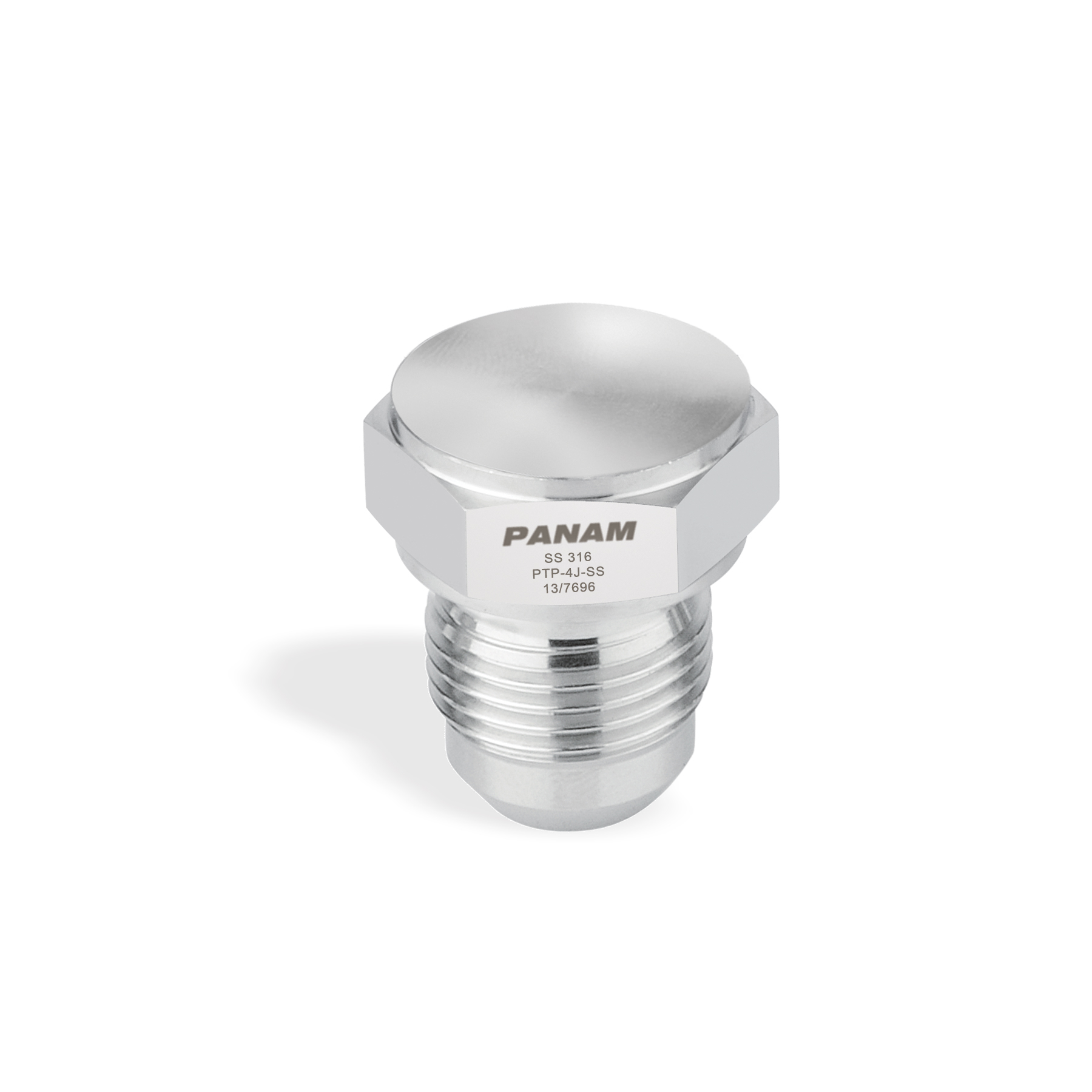

Plugs, Caps & Nuts — Nuts, Tube Caps, Cap Assembly & Plugs
SS316 Stainless Steel
Nuts, tube caps, tube cap assemblies and tube plugs in 37° JIC flare. Used for terminating and capping tube end connections across a full size range.
Why specify PANAM® JIC Fittings
Built to the same engineering standard as every PANAM® product — broad thread standard coverage, and conformance to SAE J514 and ISO 8434-2.
SS316 as standard — Duplex, Monel, Hastelloy on request
Conforms to SAE J514 and ISO 8434-2
NPT, BSPT, BSPP, SAE/MS and Metric thread standards
Material certificates available on request
1/8" to 2" fractional and 3–50mm metric tube OD
Male, female, swivel and bulkhead configurations
Technical support from our instrumentation team
Frequently Asked Questions
SAE J514 and ISO 8434-2.
NPT, ISO Tapered (BSPT), ISO Parallel (BSPP), SAE/MS Straight Thread, and Metric.
SS316 as standard, with Duplex, Monel and Hastelloy available on request.
1/8" through 2" fractional, and 3mm through 50mm metric.
Connectors, unions & swivel, adapters & reducers, elbows, tees, and plugs/caps/nuts — covering the full range of 37° flared connection geometries.
Material certificates are available on request. If your application needs sour service (NACE MR0175) materials, tell us at enquiry and we will confirm what can be supplied.
Have a spec we haven't covered? Ask our technical team.
Specify your JIC fitting
Send us your tube OD, thread standard and configuration. Our technical team responds to instrumentation enquiries within 24 hours.
