Valve Manifolds
Built to Perform.
Three manifold families — 2-Valve, 3-Valve, and 5-Valve — covering the full DP transmitter and gauge pressure range. SS316 construction, tested to 10000 psi (689 bar), with full NACE sour gas certification.
Tested to 10000 psi (689 bar)
Stainless Steel 316 construction
NACE MR-01-75 Sour Gas Certified
2-Valve · 3-Valve · 5-Valve families
NPT · BSPT · BSPP · M20 · Tube connections
Type A (Angular) configuration
Power Configuration available on 5VM
Large Bore · Bleed Valve · Temperature Service options
Tested to 10000 psi (689 bar)
Stainless Steel 316 construction
NACE MR-01-75 Sour Gas Certified
2-Valve · 3-Valve · 5-Valve families
NPT · BSPT · BSPP · M20 · Tube connections
Type A (Angular) configuration
Power Configuration available on 5VM
Large Bore · Bleed Valve · Temperature Service options
One source.
Every manifold you need.
PANAM® Valve Manifolds cover the full instrumentation and process spectrum — 2-valve, 3-valve, and 5-valve configurations engineered for DP transmitter isolation, equalization, and venting. All three families share the same SS316 construction and 6000 psi standard test rating, with high-pressure 10000 psi variants across the range.
Every manifold family is available with NACE MR-01-75 sour gas certification, multiple drain hole sizes, and a full connection size matrix covering NPT, BSPT, BSPP, M20x1.5, and PANAM® tube fittings.
Technical Specifications
Max Working Pressure
10000 psi (689 bar)
Standard Pressure Rating
6000 psi (414 bar)
Material
Stainless Steel 316
Configuration
Type A (Angular)
Connection Standards
NPT · BSPT · BSPP · M20x1.5 · Tube
Special Service
NACE MR-01-75 Sour Gas Certified
Valve Families
2VM · 3VM · 5VM
Three Families. One Standard.
Each manifold family is purpose-built for a specific transmitter type and application. Select by valve count, connection size, or special service requirement.

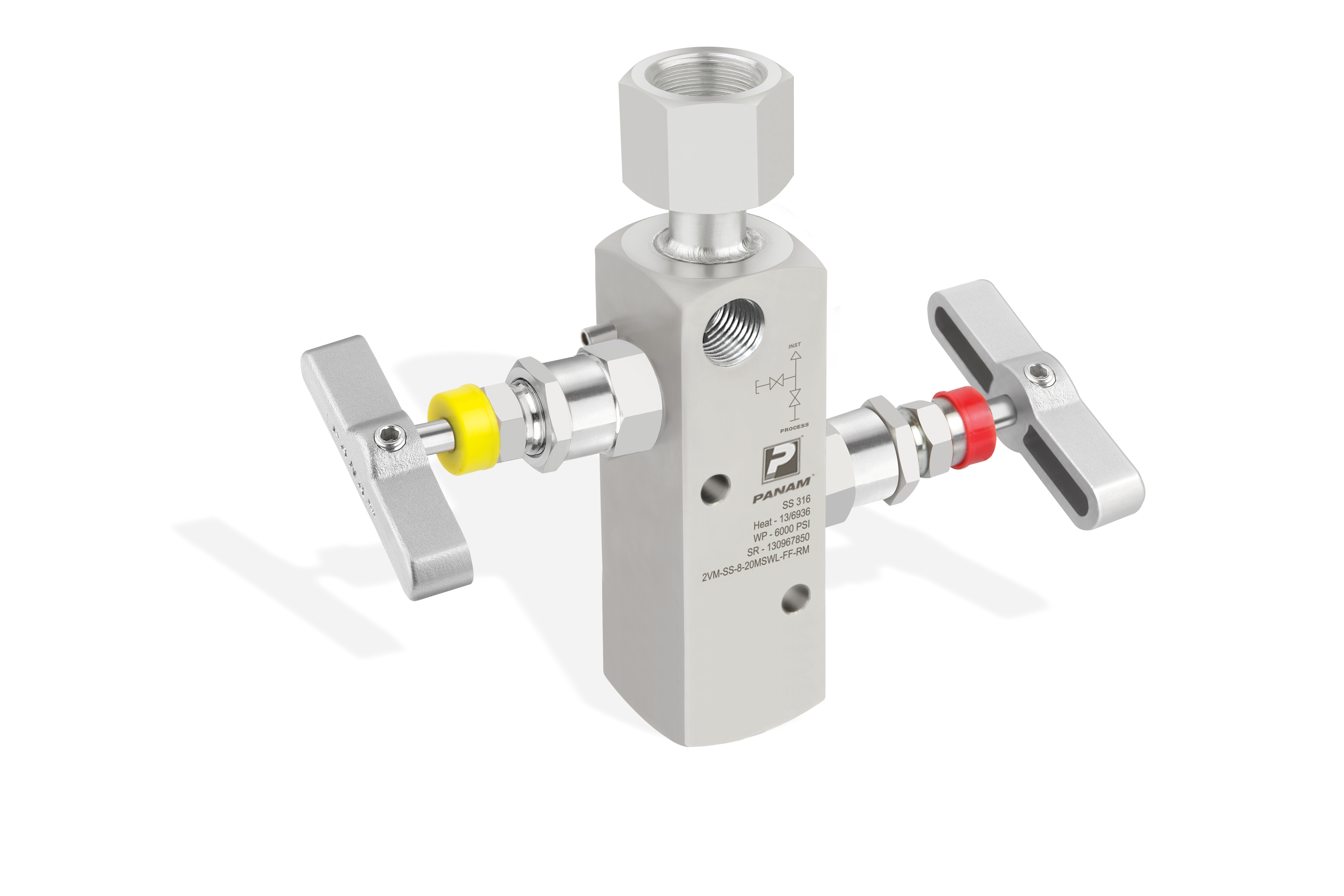

2-Valve Manifolds
6000 – 10000 psi MAX
2-Valve
Two-valve isolation manifolds for gauge and absolute pressure transmitters. Type A (Angular) configuration in stainless steel 316. Covers 1/4" to 1/2" NPT, BSPT, BSPP, M20x1.5, and tube fittings. Standard 6000 psi and high-pressure 10000 psi ratings with full NACE MR-01-75 sour gas certification available.
SS316 · NACE / Bleed Valve Options

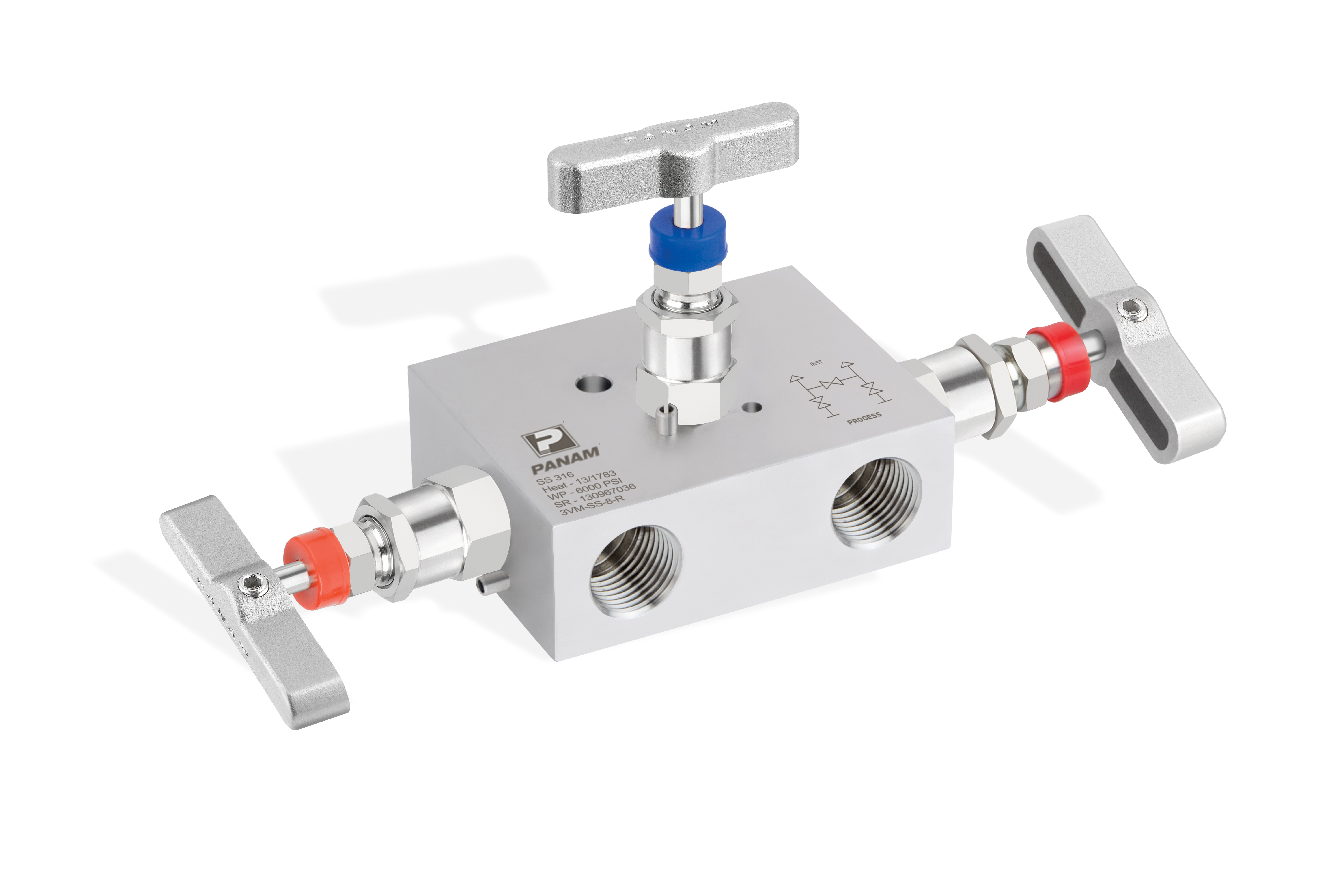

3-Valve Manifolds
6000 – 10000 psi MAX
3-Valve
Three-valve manifolds for differential pressure transmitters in process measurement, equalization, and isolation applications. Type A (Angular) configuration in stainless steel 316. Standard 6000 psi and 10000 psi high-pressure ratings with NACE MR-01-75 sour gas, bleed valve, large bore, and temperature service options.
SS316 · NACE / Large Bore / Bleed Valve

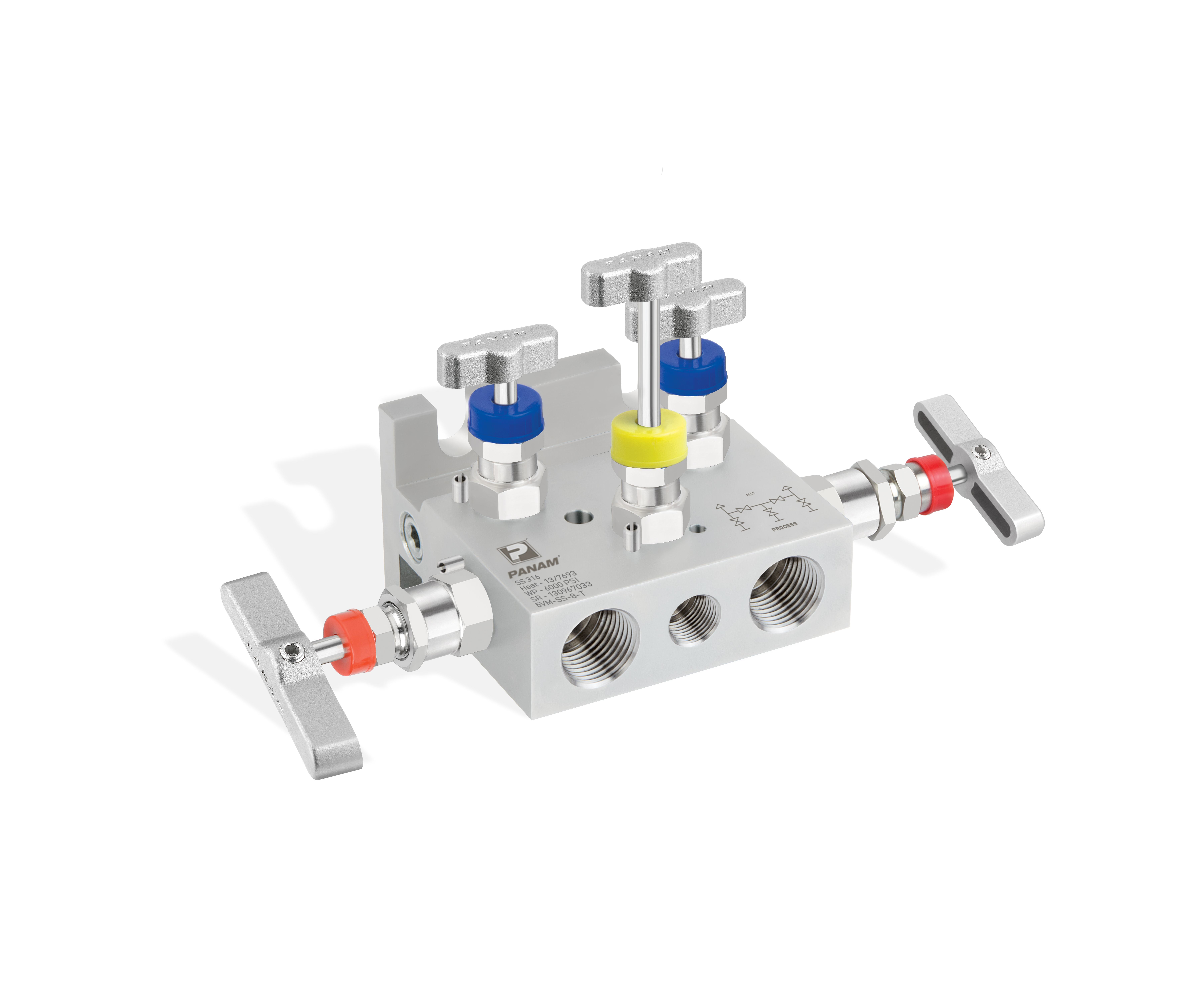

5-Valve Manifolds
6000 – 10000 psi MAX
5-Valve
Five-valve manifolds for differential pressure transmitters with independent vent and equalizer valves. Type A (Angular) configuration in stainless steel 316. Standard 6000 psi and 10000 psi high-pressure ratings. Power Configuration (2 Vent – 1 Equalizer – 2 Isolation), NACE MR-01-75, large bore (soft seat), and temperature service options.
SS316 · NACE / Power Config / LB Options
Why specify PANAM® Manifolds
All three manifold families are built to the same engineering standard — consistent materials, construction, and test procedures across the entire range.
Three manifold families from a single trusted manufacturer
Stainless Steel 316 construction across all series
Standard 6000 psi and high-pressure 10000 psi ratings
NACE MR-01-75 sour gas certification available
Type A (Angular) configuration throughout
NPT, BSPT, BSPP, M20x1.5, and tube fitting connections
Power Configuration available on 5-Valve (2V–1E–2I)
Large bore (soft seat) option on 3VM and 5VM
Bleed valve and vent with plug options
High and low temperature service available
Multiple drain hole size options per family
Mounting bracket accessories available
Specify your manifold
Send us your valve count, connection size, pressure rating, and any special service requirements. Our technical team responds to instrumentation enquiries within 24 hours.
