Fittings
Built to Hold.
Five fitting families — Tube, 37° JIC, Pipe, Weld, and Swivel Gauge Adaptors — covering fractional and metric sizes up to 15,000 psig across the world's most demanding fluid systems.
Up to 15,000 psig working pressure
SS316 · Duplex · Monel · Hastelloy · Brass
ASTM F1387 type tested
NACE MR0175 available on request
Full heat-code material traceability
Fractional 1/16" to 2" · Metric 3–50 mm OD
EN 10204 Type 3.1B test certificates
Five fitting families in one catalog
Up to 15,000 psig working pressure
SS316 · Duplex · Monel · Hastelloy · Brass
ASTM F1387 type tested
NACE MR0175 available on request
Full heat-code material traceability
Fractional 1/16" to 2" · Metric 3–50 mm OD
EN 10204 Type 3.1B test certificates
Five fitting families in one catalog
One source.
Every fitting you need.
PANAM® Fittings cover the full instrumentation and process spectrum — from precision tube fittings for leak-tight connections, to 37° JIC flare, high-pressure pipe fittings, permanent weld configurations, and 360° swivel gauge adaptors. Every family shares the same material standards, certification options, and quality controls.
All fitting families are available in SS316, Duplex, Monel, and Hastelloy with full heat-code traceability, EN 10204 Type 3.1B test certificates, and NACE MR0175 certification available on request.
Technical Specifications
Max Working Pressure
Up to 15,000 psig (1,034 bar)
Size Range
1/16" to 2" OD · 3 mm to 50 mm OD
Materials
SS316, Duplex, Monel, Hastelloy, Brass
End Connections
NPT, BSPP, BSPT, 37° Flare, JIC Swivel, Socket Weld
Test Standard
ASTM F1387 type tested
Certification
NACE MR0175 / ISO 15156 available on request
Traceability
Full heat-code traceability · EN 10204 Type 3.1B
Five Families. One Standard.
Each fitting family is purpose-built for a specific connection type and pressure class. Select by application, working pressure, or end connection.
Tube Fittings
High Pressure MAX
1/16" to 2" OD · 3–50 mm OD
Single and double ferrule designs for secure, leak-tight performance in demanding instrumentation and process applications.
SS316 · Duplex · Monel · Hastelloy · Brass
37° JIC Fittings
10,000 psig MAX
1/16" to 2"
High-performance flare fittings for critical hydrogen, chemical, and industrial gas systems with leak-tight 37° flare sealing.
SS316 · Duplex · Monel · Hastelloy
Pipe Fittings
15,000 psig MAX
1/16" to 2"
Engineered for extreme operating conditions including hydrogen storage, fuel cell technology, aerospace, and cryogenic applications.
SS316 · Duplex · Monel · Hastelloy
Weld Fittings
10,000 psig MAX
1/16" to 2"
Socket and butt weld configurations for permanent, high-integrity connections in hydrogen systems, chemical processing, and industrial gas networks.
SS316 · Duplex · Monel · Hastelloy
Swivel Gauge Adaptors
High Pressure MAX
Multiple thread sizes
360° adjustable gauge positioning with silver-plated anti-gall threads. Compatible with NPT, BSPP, BSPT, metric, and global thread standards.
SS316 · Duplex · Monel · NACE alloys

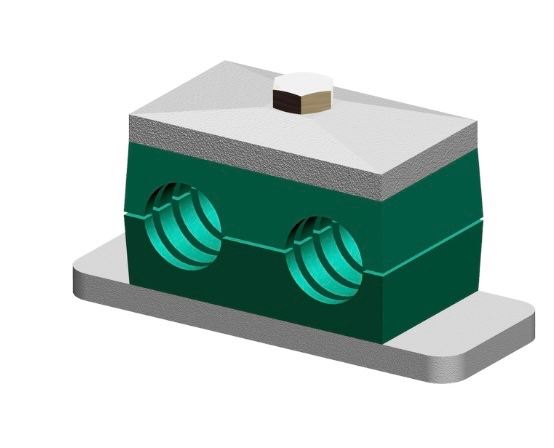

Tube Clamps
DIN Groups 1–10 MAX
4mm – 219mm OD
Twin, single layer, double layer and heavy series tube clamps in DIN Groups 1–10. Covers pipe OD from 4mm to 219mm with M6 through M30 bolt sizes. PP jaws included in every set.
SS · PP Jaws · M6 – M30 Bolts
Why specify PANAM® Fittings
Every fitting family is built to the same engineering standard — consistent materials, certifications, and traceability across the entire range.
Five fitting families from a single trusted manufacturer
SS316, Duplex, Monel, Hastelloy, and Brass across all families
ASTM F1387 type tested for leak-tight performance
NACE MR0175 / ISO 15156 certification available
Full heat-code traceability on all components
EN 10204 Type 3.1B test certificates supplied
Fractional 1/16" to 2" and metric 3–50 mm OD
NPT, BSPP, BSPT, 37° flare, JIC swivel, and socket weld ends
Silver-plated anti-gall threads on swivel gauge adaptors
Pressures from standard to 15,000 psig across the range
Specify your fitting
Send us your pressure rating, material requirement, and end connections. Our technical team responds to instrumentation enquiries within 24 hours.
