Filters
Built to Last.
Two filter families — T-Type and In-Line — covering the full instrumentation tube and pipe range. Sintered and mesh elements from 0.5μm to 440μm. SS316 construction, nitrogen leak tested at 1000 psi.
Nitrogen leak tested at 1000 psi
Stainless Steel 316 construction
Sintered & mesh filter elements
0.5 μm to 440 μm pore size
T-Type and In-Line configurations
3mm to 12mm tube · 1/8" to 1/2" thread
624+ configurations across 2 series
Instrumentation & process filtration
Nitrogen leak tested at 1000 psi
Stainless Steel 316 construction
Sintered & mesh filter elements
0.5 μm to 440 μm pore size
T-Type and In-Line configurations
3mm to 12mm tube · 1/8" to 1/2" thread
624+ configurations across 2 series
Instrumentation & process filtration
One source.
Every filter you need.
PANAM® Filters cover the full instrumentation and process spectrum — T-Type and In-Line configurations engineered for clean, regulated filtration. Both series share the same SS316 construction, sintered and mesh element options, and test procedure: a 1000 psi nitrogen leak test.
All filter series are available with sintered or mesh elements from 0.5μm to 440μm, covering 3mm to 12mm tube and 1/8\" to 1/2\" thread sizes with 624+ configurations across the range.
Technical Specifications
Working Temperature
-28°C to 482°C (-20°F to 900°F)
Testing
Nitrogen leak test at 1000 psi
Pore Size Range
0.5 μm to 440 μm
Size Range
3mm – 12mm tube · 1/8" – 1/2" thread
Material
Stainless Steel 316
Element Types
Sintered & Mesh
Configurations
624+ configurations across 2 series
Series
PTF (T-Type) · PIF (In-Line)
Two Families. One Standard.
Each filter series is purpose-built for a specific configuration and application. Select by connection type, pore size, or tube range.

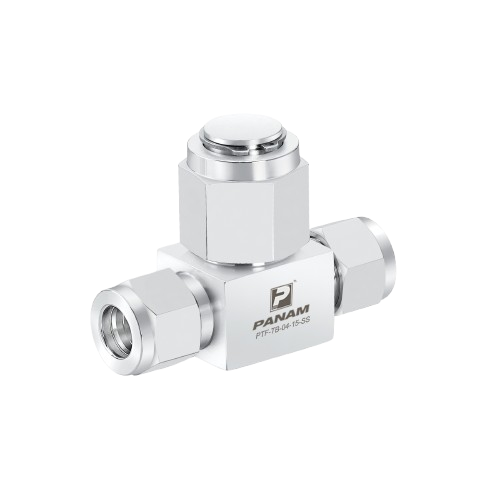

T-Type In-Line Filters
LEAK TESTED TO 1000 PSI
3mm – 12mm tube · 1/8" – 1/2" thread
T-type configuration for instrumentation, process, and analytical applications. Stainless steel 316 construction with sintered or mesh elements across the full pore size range. Series TA, TB, TC, and TD covering 3mm to 12mm tube and 1/8" to 1/2" thread sizes.
SS316 · Sintered & Mesh Elements

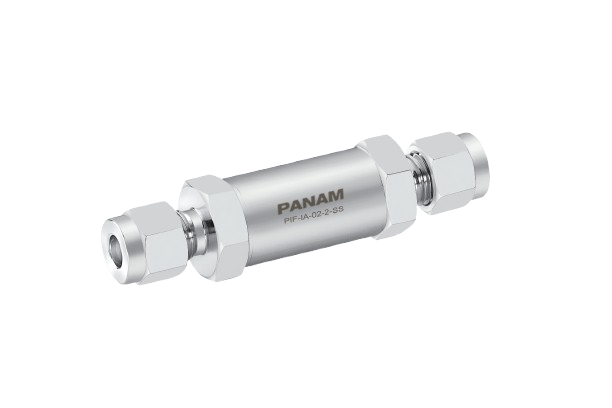

In-Line Filters
LEAK TESTED TO 1000 PSI
3mm – 12mm tube · 1/8" – 1/2" thread
In-line configuration for instrumentation, process, and analytical applications. Stainless steel 316 construction with sintered or mesh elements across the full pore size range. Series IA, IB, IC, and ID covering 3mm to 12mm tube and 1/8" to 1/2" thread sizes.
SS316 · Sintered & Mesh Elements
Replacement Filter Elements
SPARE KIT
Fits PIF & PTF Housings
Replacement filter elements (cartridges) for PIF In-Line and PTF T-Type filter housings. Stainless steel 316 sintered or mesh construction across 0.5μm to 440μm pore sizes. Small-bore elements fit IA/IB/TA/TB housings; large-bore elements fit IC/ID/TC/TD housings.
SS316 · Sintered & Mesh Elements
Why specify PANAM® Filters
Both filter families are built to the same engineering standard — consistent materials, construction, and test procedures across the entire range.
Two filter families from a single trusted manufacturer
Stainless Steel 316 construction across all series
Sintered and mesh elements from 0.5μm to 440μm
Nitrogen leak tested at 1000 psi
T-Type and In-Line configurations available
3mm to 12mm tube and 1/8" to 1/2" thread sizes
624+ configurations across PTF and PIF series
Suitable for instrumentation, process, and analytical applications
Oxygen-service cleaning available (OXY option)
Series TA, TB, TC, TD, IB, IA, IC, and ID covered
Pore size code in part numbers: 05 = 0.5μm, 2 = 2μm, 7 = 7μm
Specify your filter
Send us your pore size requirement, tube size, and connection type. Our technical team responds to instrumentation enquiries within 24 hours.
