Weld Fittings
Precision. Every Weld.
Tube socket weld, tube butt weld and pipe socket weld fittings in SS316. Available across NPT, BSPT and BSPP thread standards in fractional inch and metric sizes.
SS316 Stainless Steel
Tube Socket Weld · Butt Weld · Pipe Socket Weld
NPT · BSPT · BSPP
1/8" to 2" fractional · 6mm to 38mm metric
Male & Female Connectors
Elbows · Tees · Unions
Material certificates on request
SS316 Stainless Steel
Tube Socket Weld · Butt Weld · Pipe Socket Weld
NPT · BSPT · BSPP
1/8" to 2" fractional · 6mm to 38mm metric
Male & Female Connectors
Elbows · Tees · Unions
Material certificates on request
Every weld configuration.
One trusted source.
PANAM® Weld Fittings cover the complete range of connection geometries required in instrumentation and process piping — from standard male and female connectors to elbows, tees and unions in both socket weld and butt weld configurations.
All fittings are manufactured in SS316 as standard. Thread standards include NPT, ISO Tapered (BSPT) and ISO Parallel (BSPP). Available in both fractional inch and metric tube OD sizes.
Material certificates are available on request. Size range covers 1/8" through 2" fractional and 6mm through 38mm metric.
Three categories. Every weld configuration.
Select by fitting category to filter the full range by type, tube OD and thread standard.

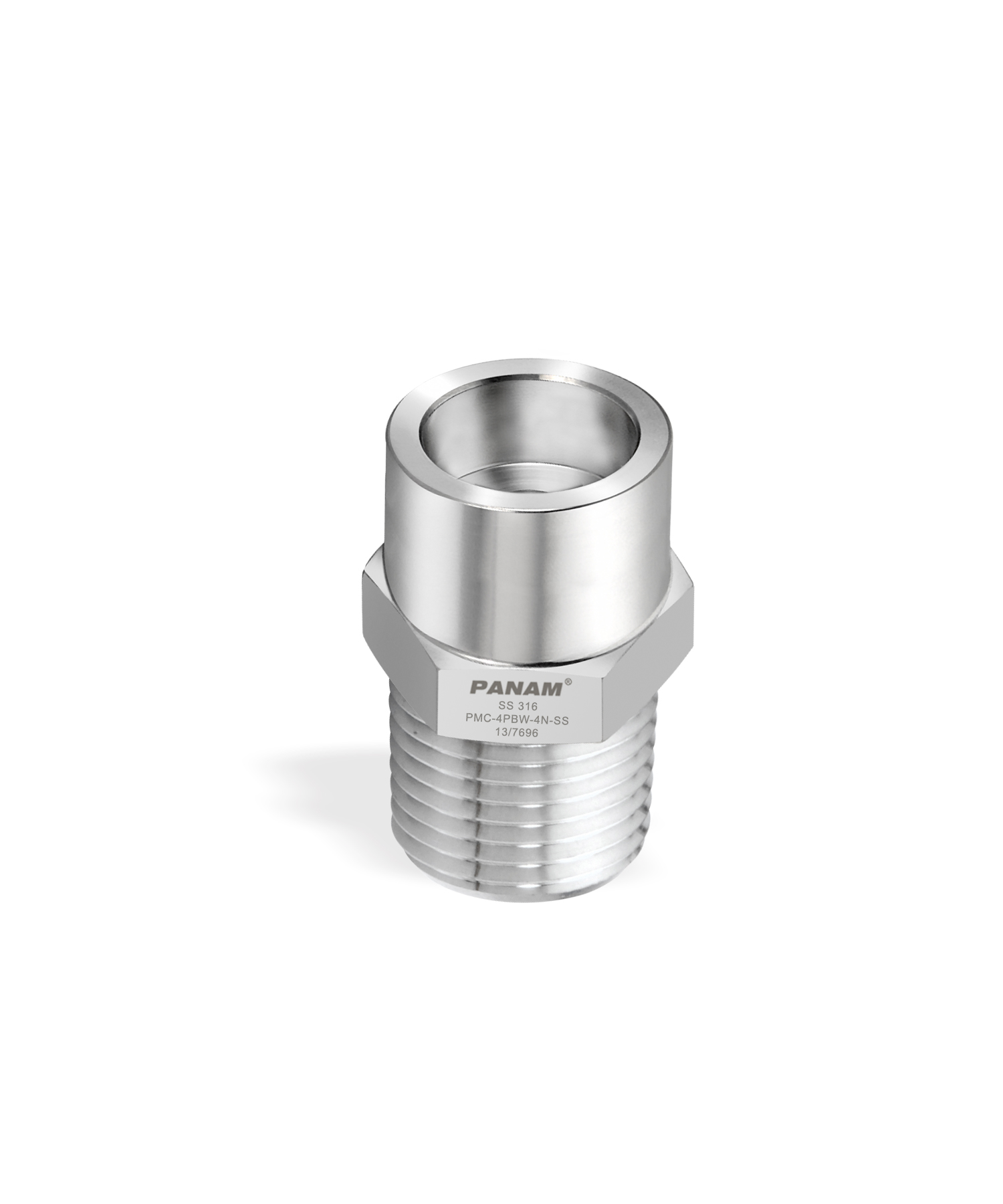

Connectors — Male & Female Connectors
SS316 Stainless Steel
Male and female weld connectors in tube socket weld configuration. Available across NPT thread standards in fractional inch and metric tube OD sizes.
Elbows — Male & Female Elbows
SS316 Stainless Steel
Male and female weld elbows in tube socket weld configuration. Available across NPT thread standards in fractional inch tube OD sizes from 1/8" to 1-1/2".

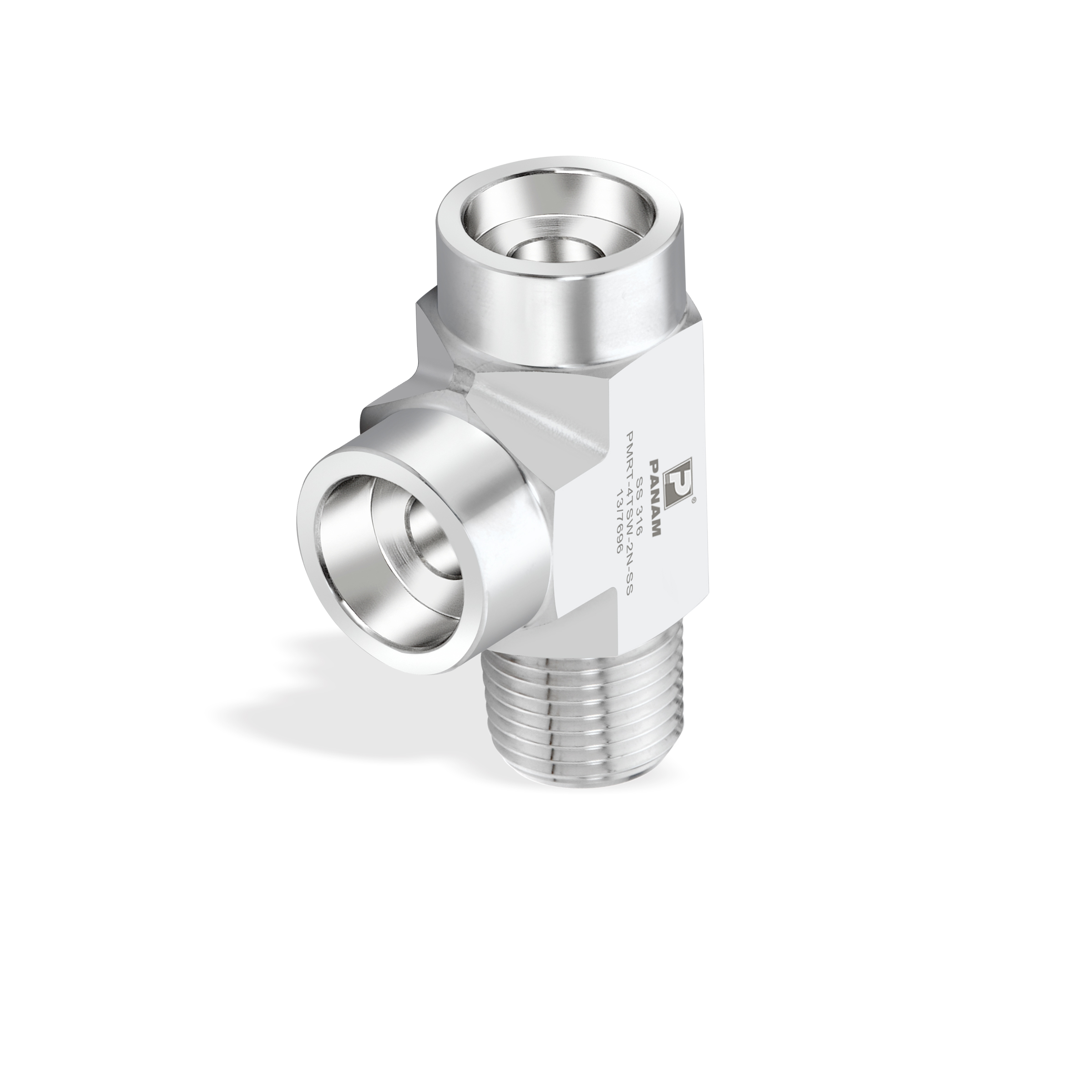

Tees — Male Run & Branch Tees
SS316 Stainless Steel
Male run and branch tees in tube socket weld configuration. Available across NPT thread standards in fractional inch tube OD sizes from 1/8" to 2".
Why specify PANAM® Weld Fittings
Built to the same engineering standard as every PANAM® product — broad thread standard coverage, and availability in both inch and metric sizes.
SS316 as standard — Duplex, Monel, Hastelloy on request
Tube Socket Weld, Butt Weld and Pipe Socket Weld
NPT, BSPT and BSPP thread standards
Material certificates available on request
1/8" to 2" fractional and 6–38mm metric tube OD
Male, female and union configurations
Technical support from our instrumentation team
Frequently Asked Questions
Tube socket weld, tube butt weld and pipe socket weld fittings, covering connectors, elbows, tees and unions.
SS316 as standard, with Duplex, Monel and Hastelloy available on request.
NPT, ISO Tapered (BSPT) and ISO Parallel (BSPP).
1/8" to 2" in fractional inch sizes, and 6mm to 38mm in metric.
Connectors, elbows, and tees, in male and female configurations.
Material certificates are available on request. If your application needs sour service (NACE MR0175) materials, tell us at enquiry and we will confirm what can be supplied.
Have a spec we haven't covered? Ask our technical team.
Specify your weld fitting
Send us your tube OD, thread standard and configuration. Our technical team responds to instrumentation enquiries within 24 hours.
