Needle Valves
Built to Hold.
Five proven series — IB, HB, HP, SB, and Mini — delivering leak-tight shut-off from 3,000 to 20,000 psig across the world's most demanding fluid systems.
Up to 20,000 psig working pressure
SS316 · Duplex · Monel · Hastelloy
NACE MR0175 available on request
Non-rotating Vee-tip stem — zero leak-by
Full heat-code material traceability
NPT · BSPP · BSPT · PANAM® Tube Fitting
Up to 20,000 psig working pressure
SS316 · Duplex · Monel · Hastelloy
NACE MR0175 available on request
Non-rotating Vee-tip stem — zero leak-by
Full heat-code material traceability
NPT · BSPP · BSPT · PANAM® Tube Fitting
Precision metering.
Repeatable shut-off.
PANAM® Needle Valves are available across multiple series—including IB, HB, HP (20K), HP (60K), SB, and Mini Series—to meet a wide range of pressure and flow‑control requirements. Manufactured in SS316, Duplex, Monel, and Hastelloy using both forged and bar‑stock construction, these valves deliver exceptional corrosion resistance and durability in demanding industrial environments.
A broad selection of end‑connection options is offered, including male and female NPT, BSPP, BSPT, ISO tapered pipe ends, and PANAM® tube‑fitting connections. The valves support maximum working pressures up to 20,000 psig (1,379 bar) and are available in sizes from 1/8" to 1". Standard PTFE gland packing ensures smooth operation, with optional Graphoil packing for high‑temperature service up to 538°C (1000°F).
The non‑rotating vee‑tip or ball‑tip stem design provides reliable, repetitive, leak‑tight shut‑off, even under high‑pressure cycling. NACE certification is available upon request, and full heat‑code traceability ensures complete material verification and quality assurance.
Five Series. One Standard.
Each series is purpose-built for a specific pressure class and installation requirement — select by working pressure, construction type, or application.

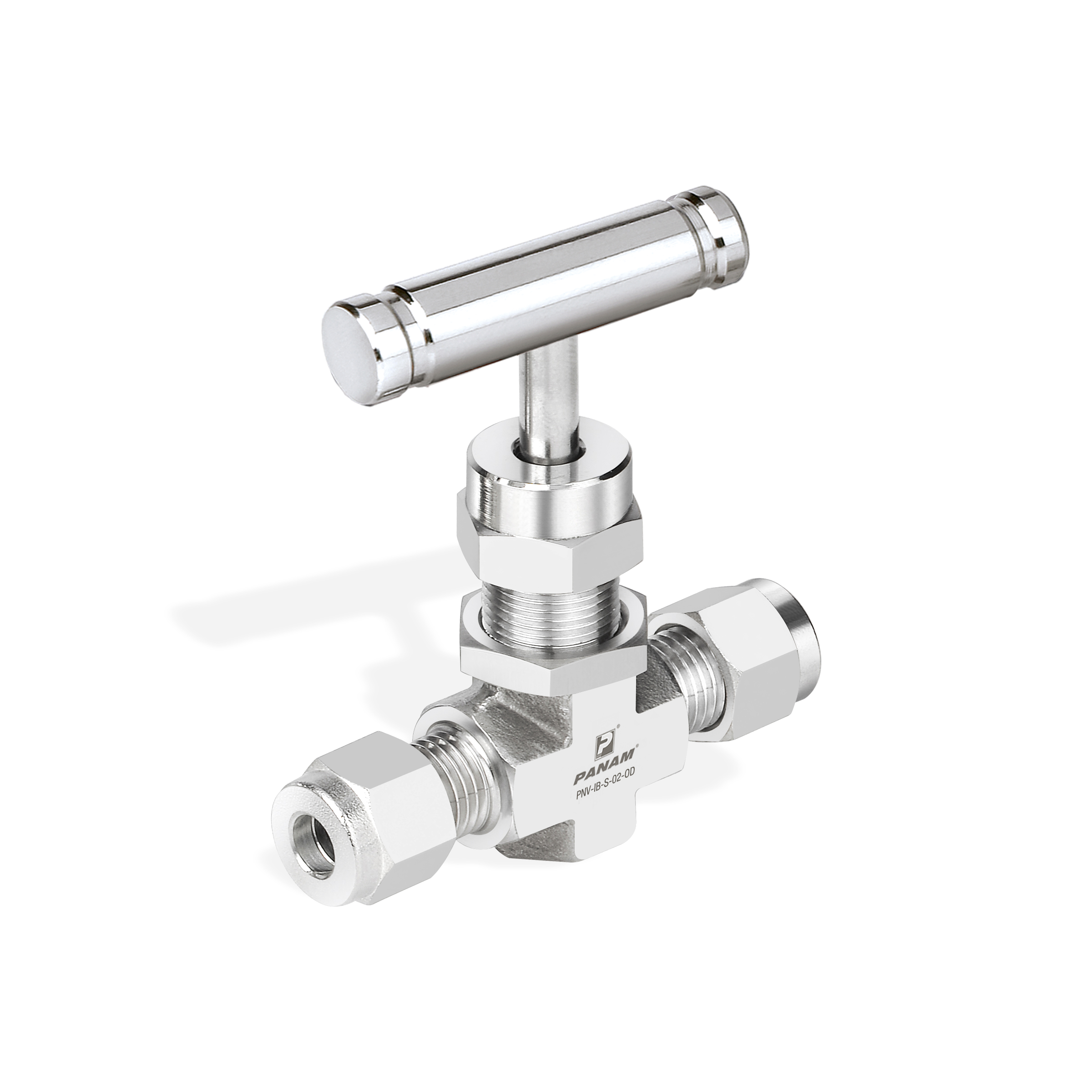

IB Series — Integral Bonnet
6,000 psig MAX
Integral Bonnet Needle Valves with working pressures up to 6,000 psig. Available in SS316, Duplex, and Monel with a broad range of end-connection options.

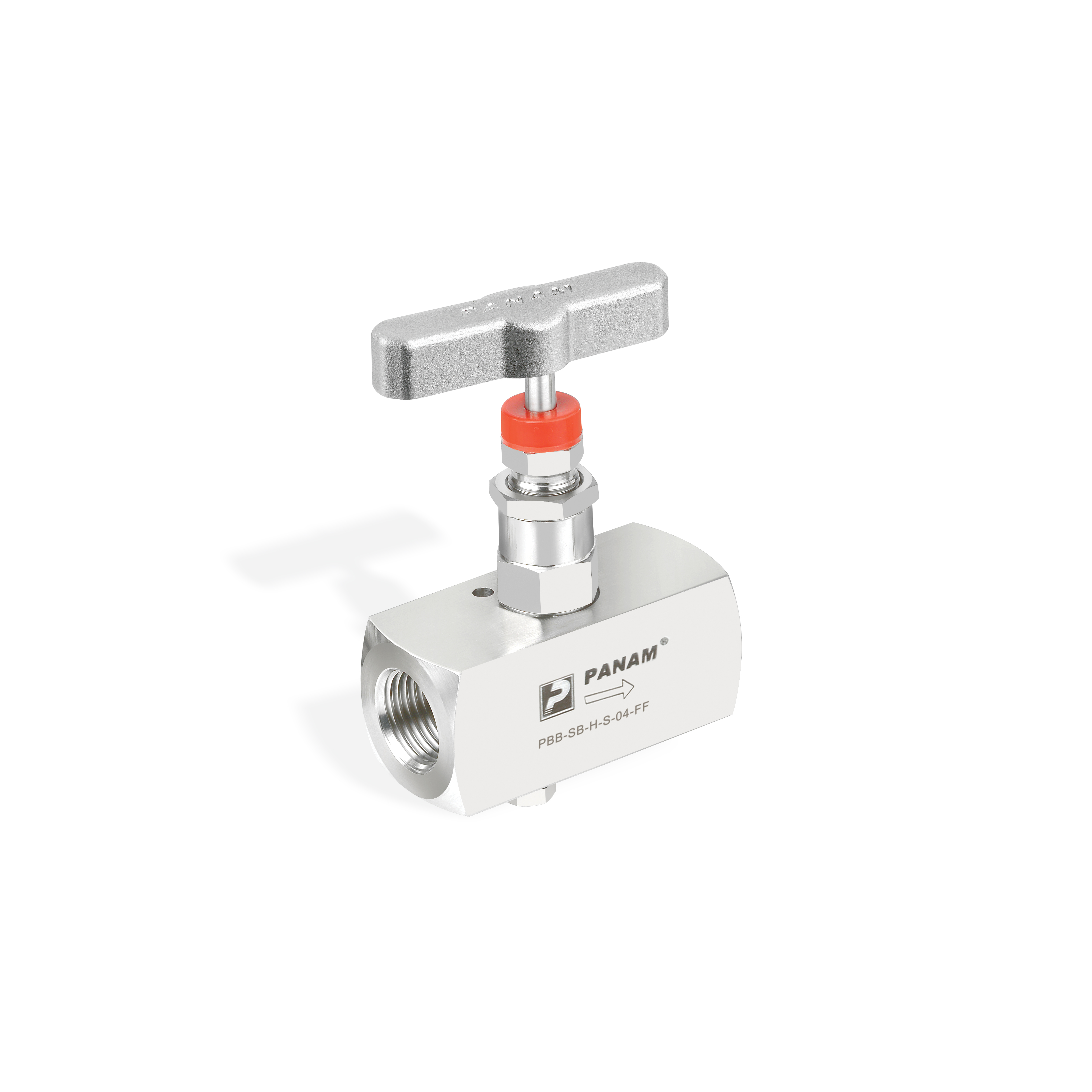

SB Series — Heavy-Duty Bar Stock
10,000 psig MAX
Heavy-duty bar stock construction supporting up to 10,000 psig. Available in Metal and Soft seat options for a wide range of process conditions.

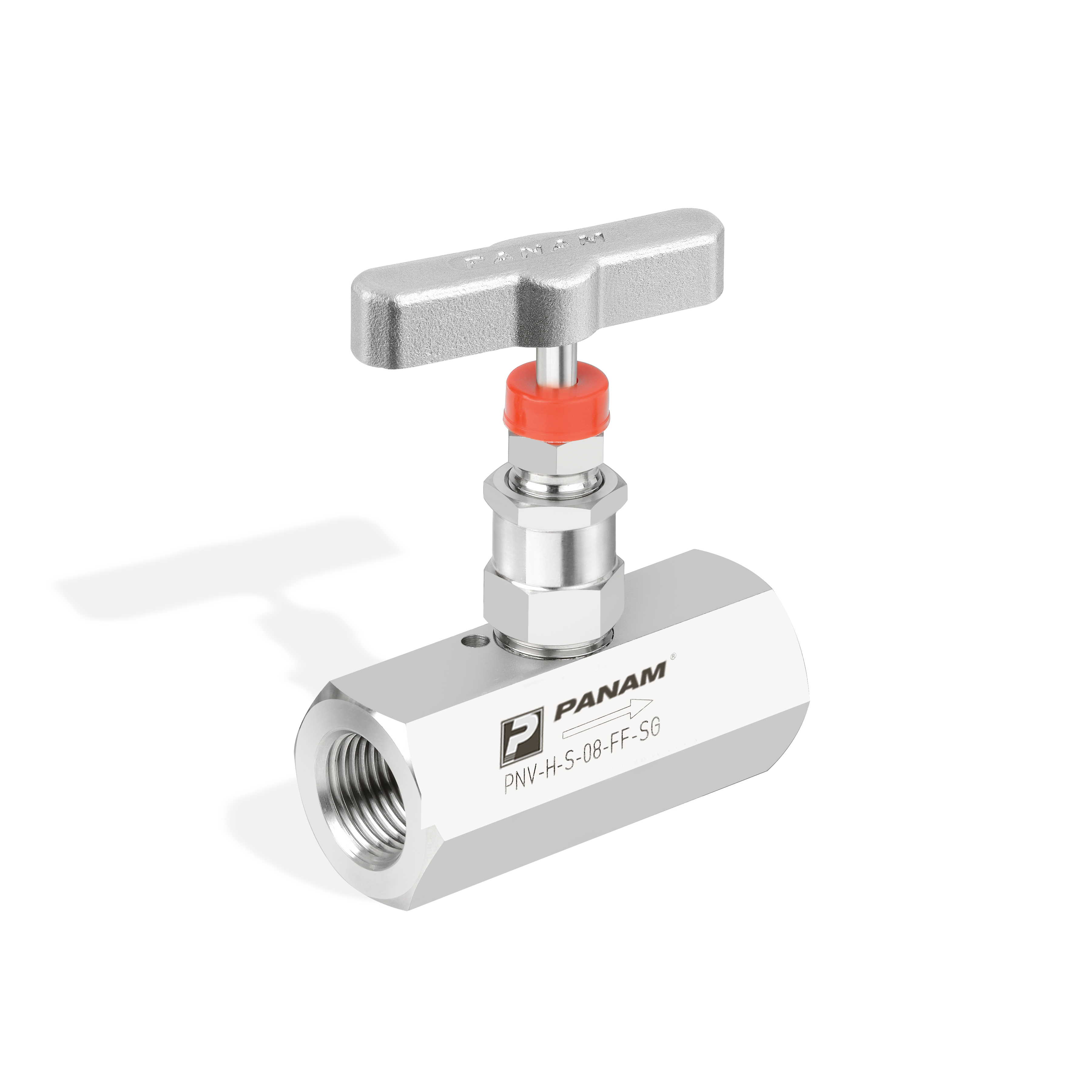

HB Series — Block & Bleed
10,000 psig MAX
High-pressure block and bleed capable valves rated for 10,000 psig. Non-rotating Vee-tip design ensures reliable, repeatable shut-off under severe cycling.

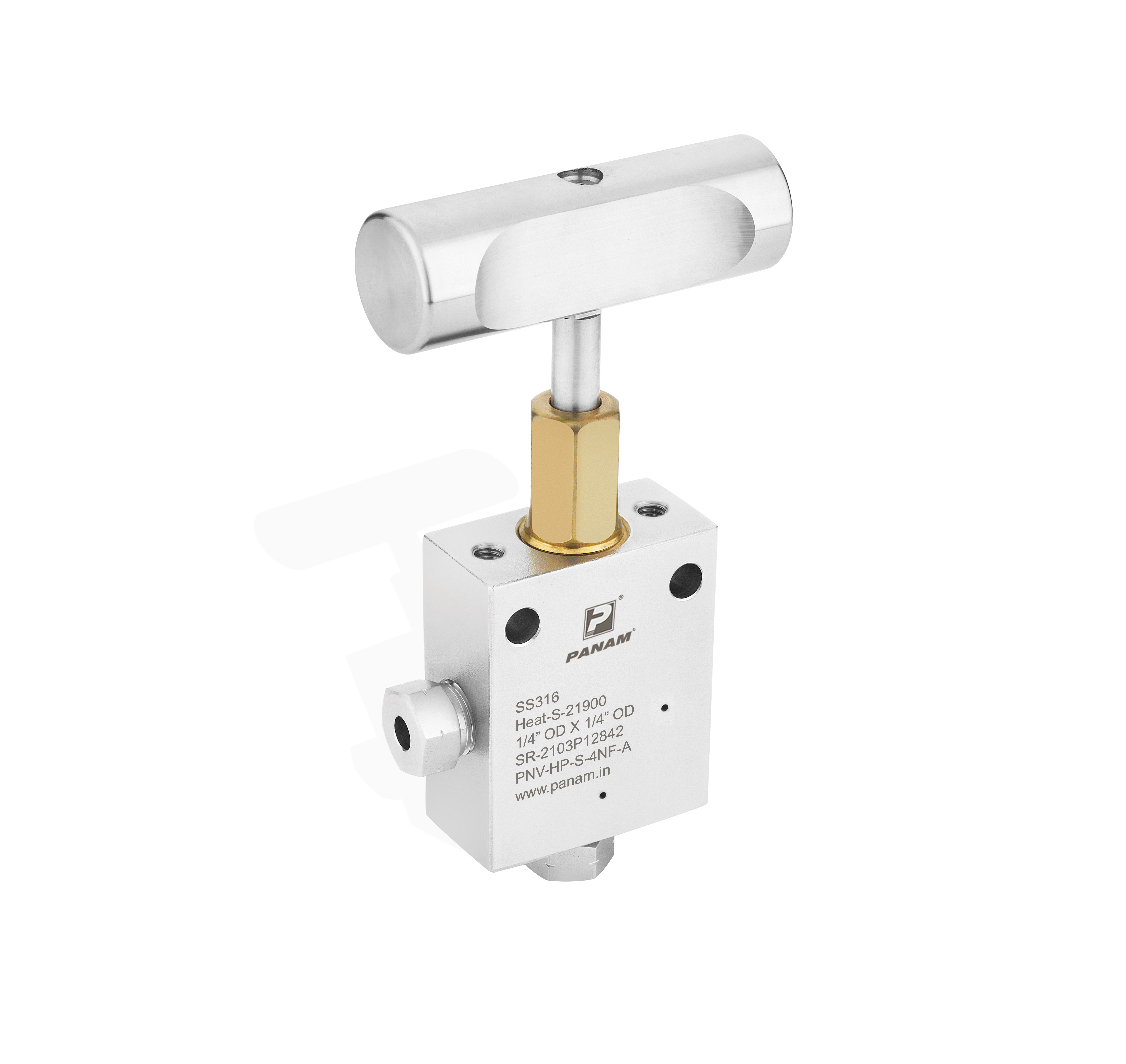

HP Series — High Pressure Forged
10,000 psig MAX
One-piece forged design for extreme-duty applications up to 10,000 psig and temperatures up to 538°C (1000°F) with optional Graphoil packing.

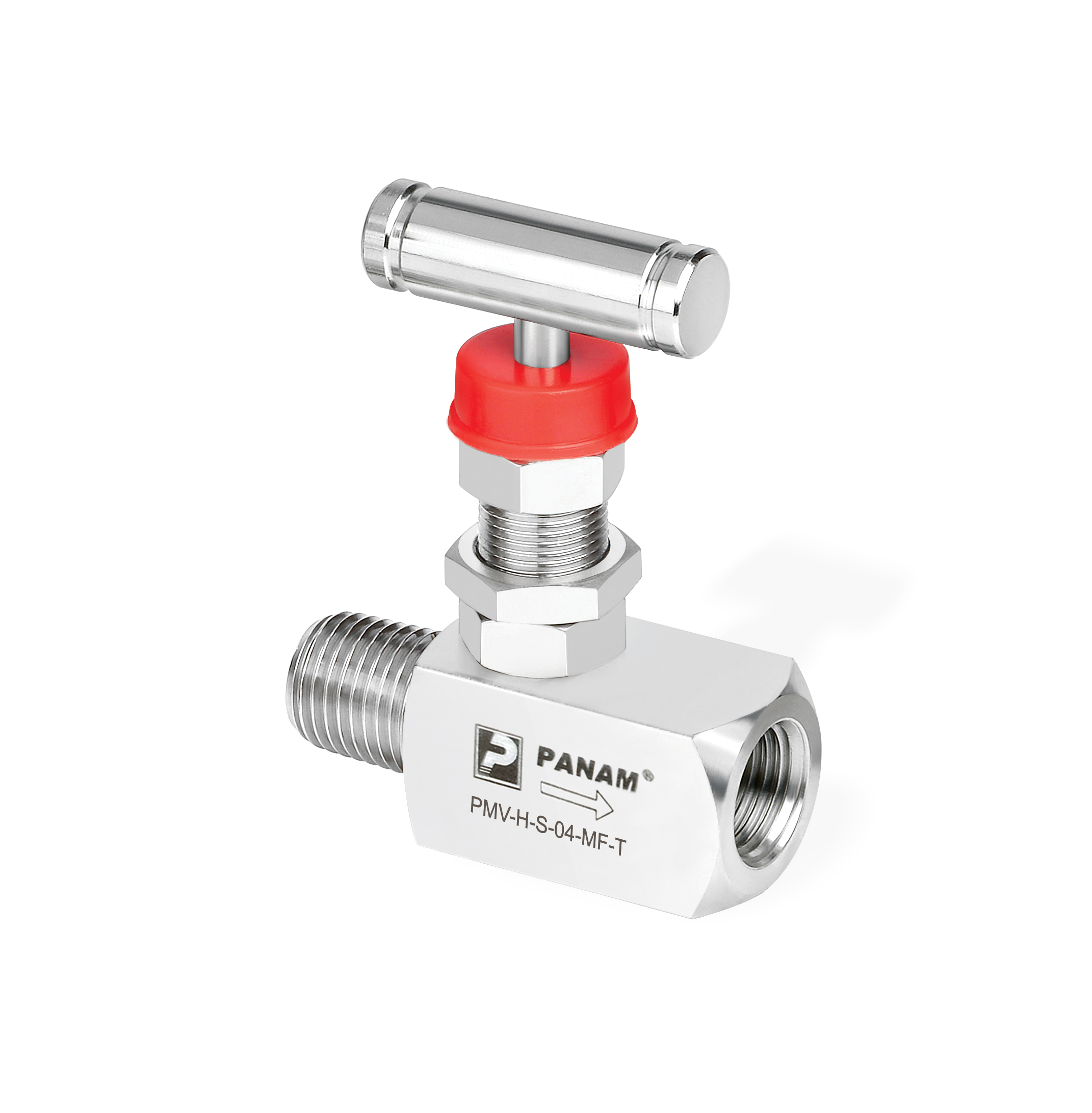

Mini Series — Compact Instrumentation
3,000 psig MAX
Compact needle valves engineered for space-restricted instrumentation applications, rated for 3,000 psig working pressure with full leak-tight performance.
Why specify PANAM® Needle Valves
Every series is built around the same core engineering principles — non-rotating stem, full traceability, and broad material availability.
Non-rotating Vee-tip stem eliminates seat scoring
PTFE gland packing standard — Graphoil to 538°C optional
Full heat-code traceability on all components
NACE MR0175 / ISO 15156 certification available
Forged and bar stock construction options
SS316, Duplex, Monel, and Hastelloy materials
NPT, BSPP, BSPT, ISO tapered, and PANAM® tube-fitting ends
Rated from 3,000 to 20,000 psig across series
Specify your needle valve
Send us your pressure rating, material requirement, and end connections. Our technical team responds to instrumentation enquiries within 24 hours.
