Tube Clamps
Built to Hold.
Twin, single layer, double layer and heavy series tube clamps. DIN Groups 1–10, covering pipe OD from 4mm to 219mm with M6 through M30 bolt sizes.
Twin · Single Layer · Double Layer · Heavy Series
DIN Groups 1–10
4mm to 219mm Pipe OD
M6 through M30 Bolt Sizes
PP Jaws Included
Stainless Steel
Dimensions in mm
One Set — Complete Assembly
Twin · Single Layer · Double Layer · Heavy Series
DIN Groups 1–10
4mm to 219mm Pipe OD
M6 through M30 Bolt Sizes
PP Jaws Included
Stainless Steel
Dimensions in mm
One Set — Complete Assembly
Five series. Every installation requirement.
PANAM® Tube Clamps cover the full range of pipe support configurations required in instrumentation and process installations — from compact twin series clamps for small bore tubing to heavy series clamps for large diameter pipes up to 219mm OD.
All clamps are supplied as complete sets including plates, bolts, and PP jaws. Double layer clamps additionally include stacking bolts and a locking plate for multi-tube installations.
DIN group sizing ensures straightforward selection by pipe OD. Dimensions are provided in mm across all series.
Five series. One source.
Select by series to filter the full range by DIN group and pipe OD.
Twin Series — Tube Clamps
DIN Groups 1–5
6mm – 42mm OD
M6 / M8 Bolts
Twin series tube clamps in DIN Groups 1–5. Covers pipe OD from 6mm to 42mm. Each set includes one top plate, one bottom plate, one hex bolt, and one pair of PP jaws.

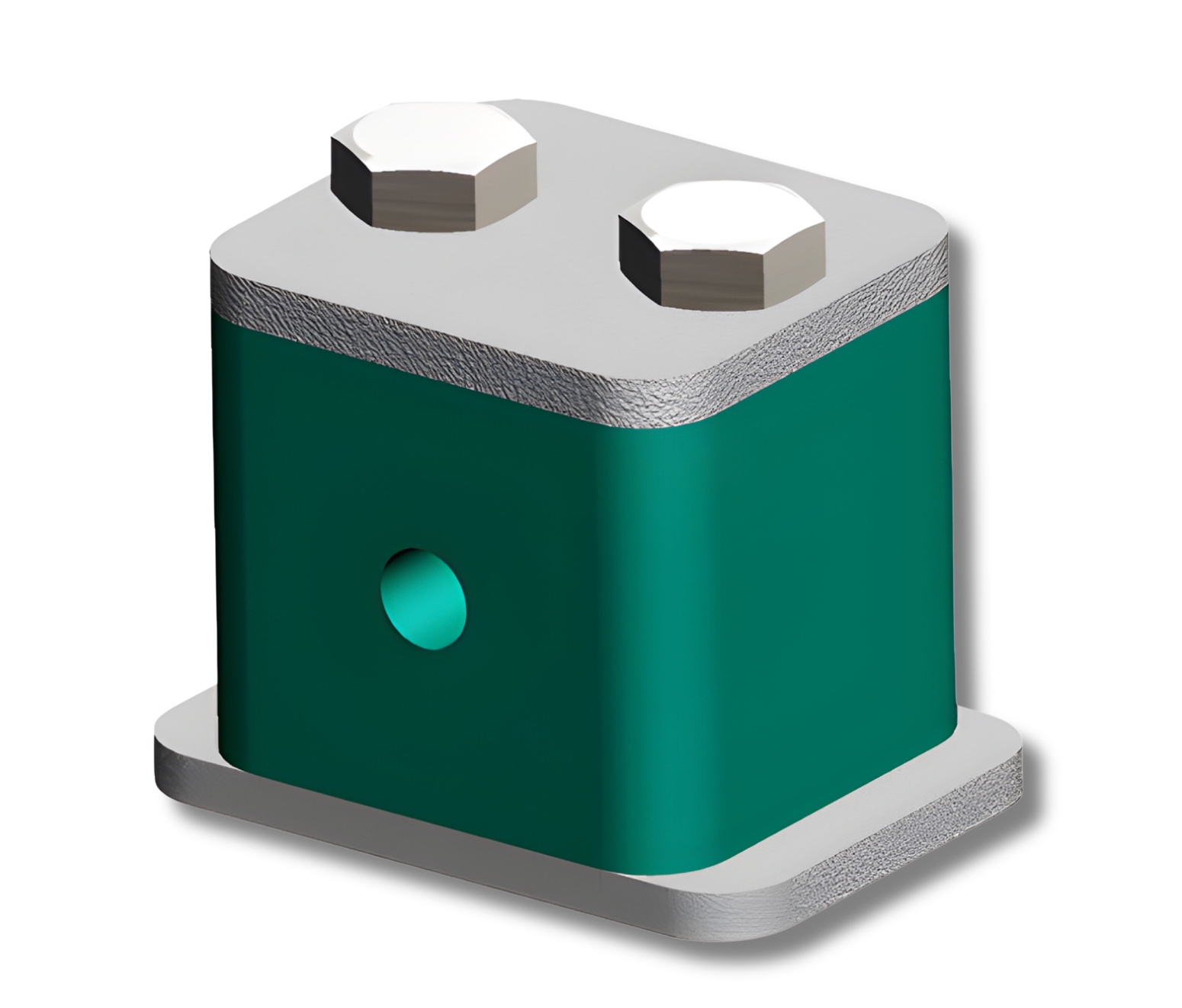

Single Layer — Tube Clamps
DIN Groups 1–10
6mm – 42mm OD
M6 Bolts
Single layer tube clamps in DIN Groups 1–10. Covers pipe OD from 6mm to 42mm. Each set includes one top plate, one bottom plate, 2 hex bolts, and one pair of PP jaws.

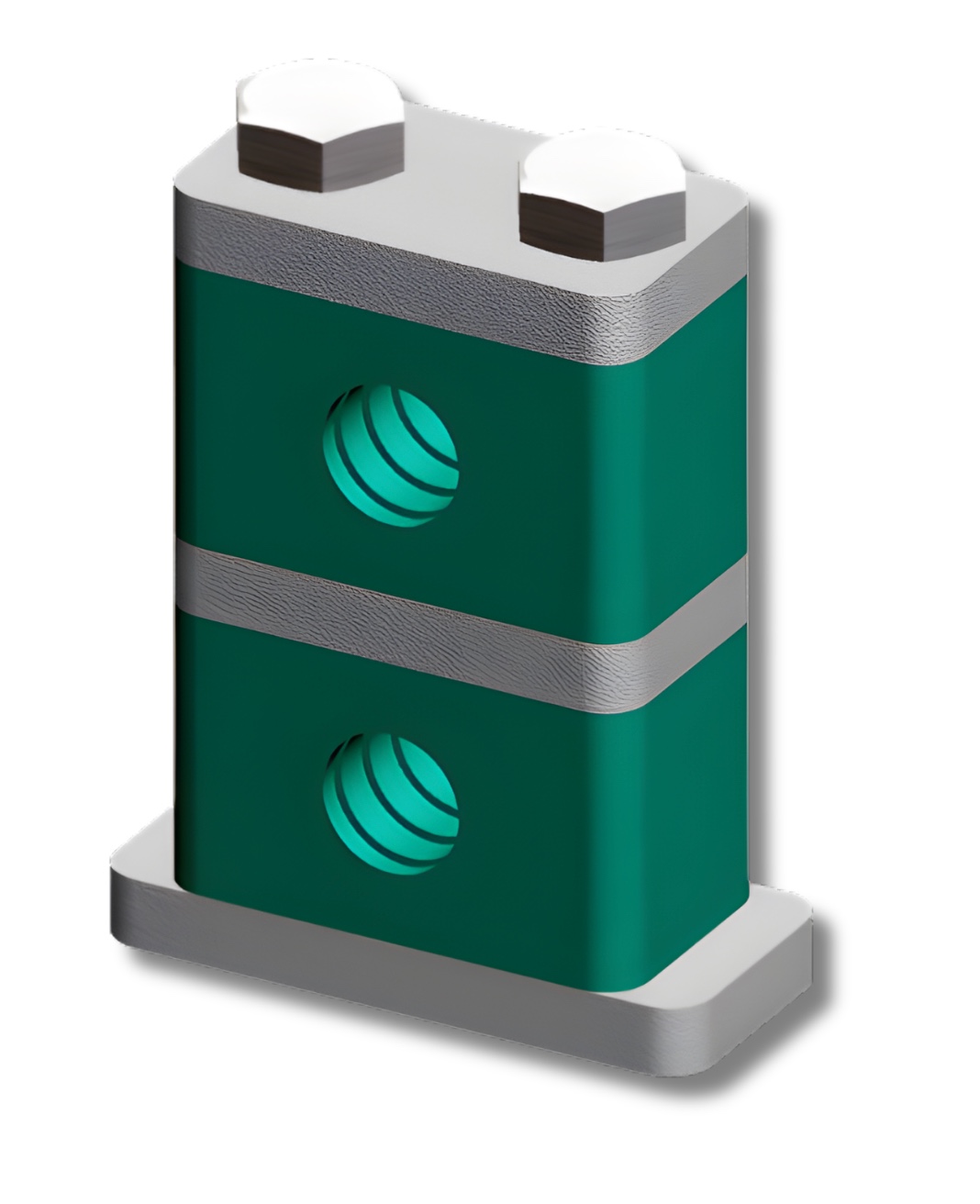

Double Layer, Standard Series — Tube Clamps
DIN Groups 1–6
4mm – 50.8mm OD
M6 Bolts
Double layer tube clamps in DIN Groups 1–6. Covers pipe OD from 4mm to 50.8mm. Each set includes one top plate, one bottom plate, 2 hex bolts, two pairs of PP jaws, 2 stacking bolts, and 1 locking plate.

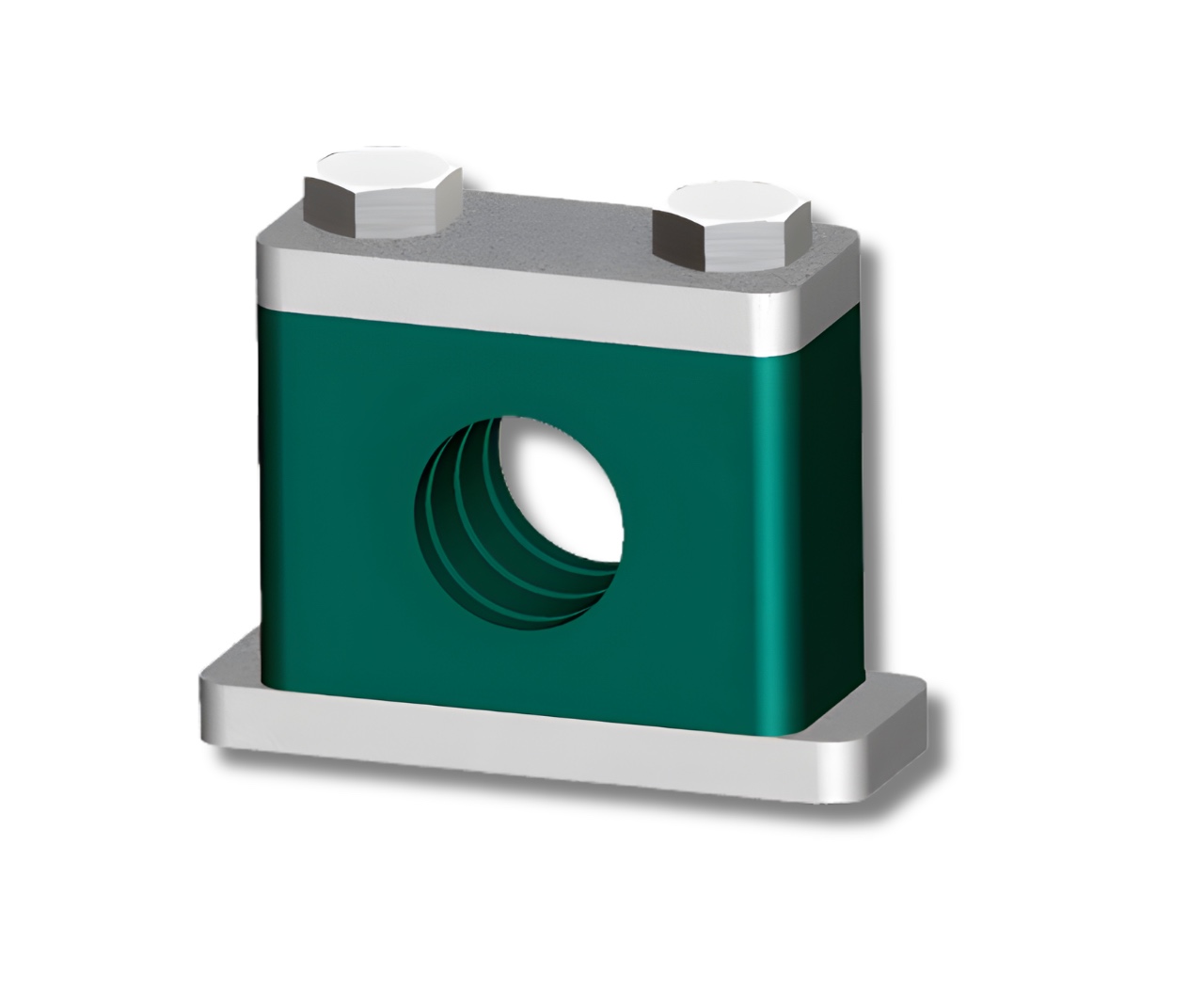

Heavy Series, Single Layer — Tube Clamps
DIN Groups 1–10
6mm – 219mm OD
M10 – M30 Bolts
Heavy duty tube clamps in DIN Groups 1–10. Covers pipe OD from 6mm to 219mm. Each set includes one top plate, one bottom plate, 2 hex bolts (4.6 Grades), and one pair of PP jaws.
Heavy Series, Double Layer — Tube Clamps
DIN 3015
DIN Groups 1–8
6mm – 219mm OD
Heavy series double layer tube clamps DIN 3015 in DIN Groups 1–8. Covers pipe OD from 6mm to 219mm. Each set includes top plate, bottom plate, locking plate, 2 stacking bolts, 2 hex bolts, and 2 set PP jaws.
Why specify PANAM® Tube Clamps
Complete sets supplied as standard — no sourcing individual components. DIN group sizing for straightforward selection across all five series.
Five series — Twin, Single Layer, Double Layer, Heavy Single and Heavy Double
DIN Groups 1–10 across the full range
Pipe OD coverage from 4mm to 219mm
M6 through M30 bolt sizes
PP jaws included in every set
Double layer series includes stacking bolts and locking plate
Heavy series rated for large diameter industrial pipe
All dimensions in mm — reference drawings available
Specify your tube clamp
Send us your pipe OD, DIN group and series requirement. Our technical team responds to instrumentation enquiries within 24 hours.
